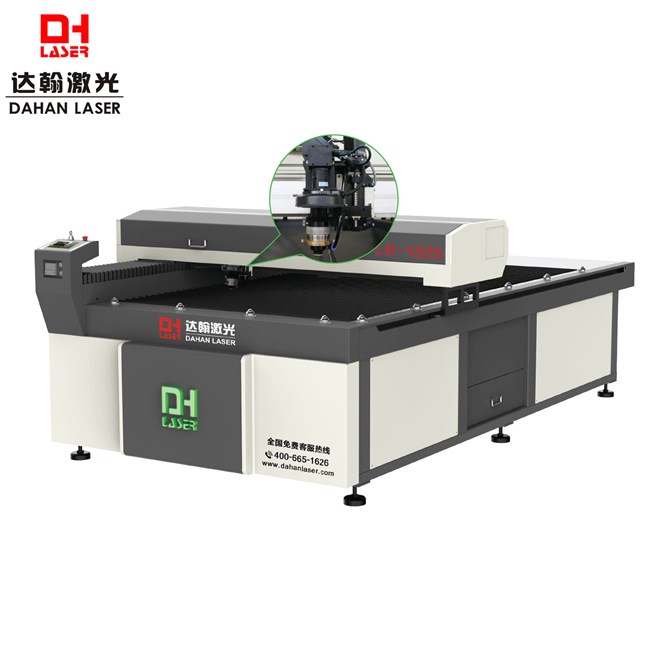

150W 300W Laser Cutting Machine 1325 Wood Laser Cutting Machine

Product Application

Widely used in the processing of heteromorphism drawings' contour cutting, high precision high polished organic materials/acrylic cutting, display panel, display cabinet, showcase, lighting industry, photo frame woodworking industry, architectural model, handicrafts, decoration industry, sign advertising words making, LED lighting box, aerospace industry, machinery, ship, elevator industry, etc.

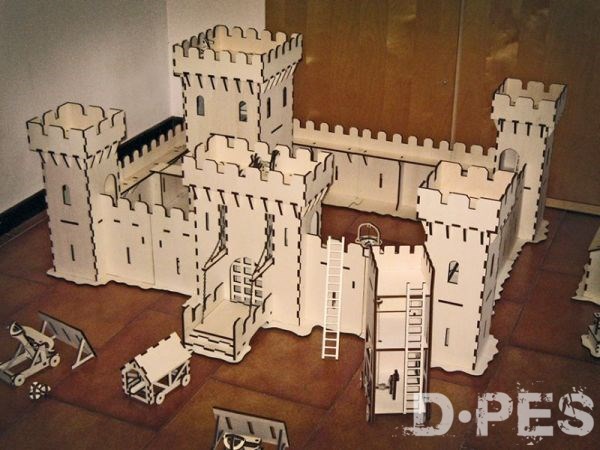

Suitable for cutting organic materials/acrylic, plywood, MDF, fabric, leather, paper, etc.

Main Features

1.Adopt imported ball screw transmission, Mitsubishi servo system, higher precision, faster in cutting; Tempering and aging machine body, make sure machine work for long time without distortion; optional automatic focusing function;

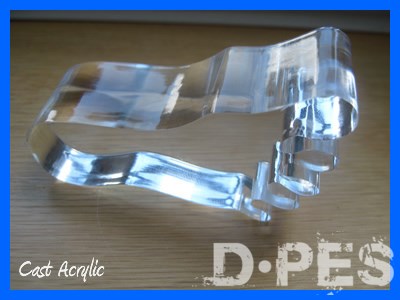

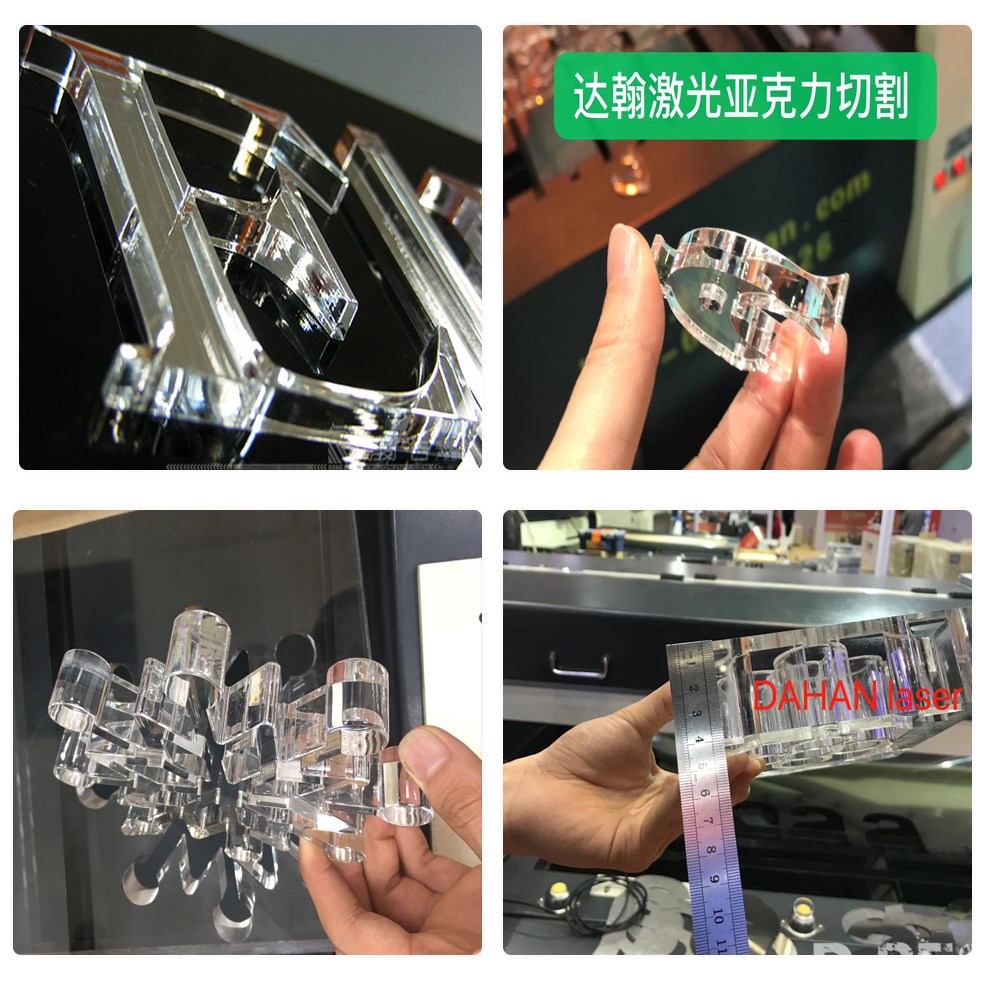

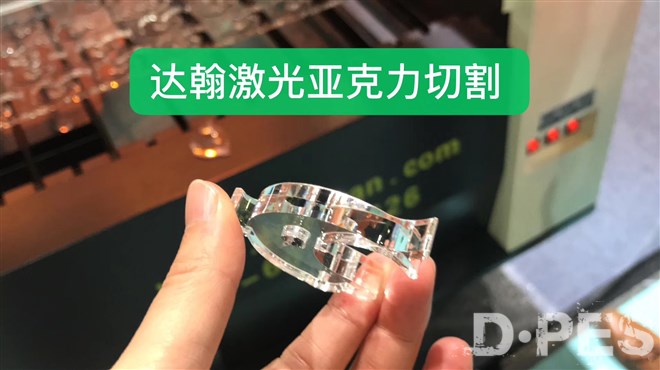

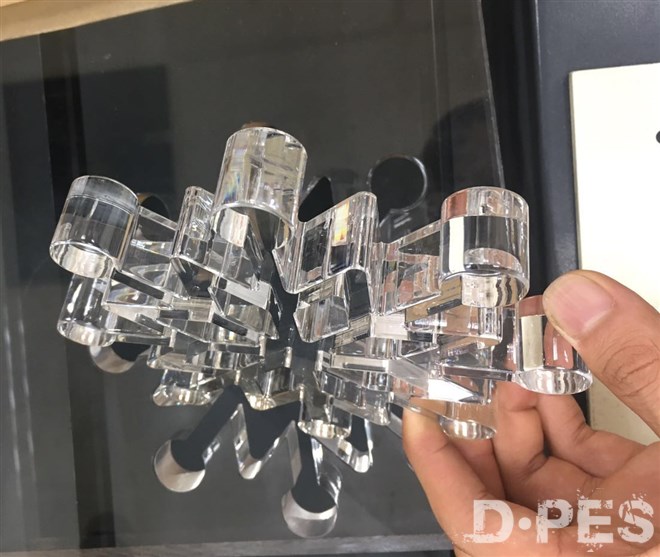

2.Can cut 20MM acrylic, or even 40MM acrylic if choose higher power of laser tube;

3. Equipped latest industrial CCD Camera and vision cutting system, has multi-function like feature image positioning, mark point positioning, contour identification and cutting, self-adaption identifying path planning, etc.

4.Solve the problem of UV printer's heteromorphic drawing cutting, suitable for large size cutting; more easier in operation.

5.The vision cutting system is both for vision cutting and normal cutting;

6.Realized feature template and feature matching; Add module of WIFI data sending and receiving; Optional color camera with 3.0 mega pixels or black & white camera with 1.3 mega pixels.

Servo Motor and Drives

Brand:Japanese Mitsubishi

Original: JAPAN

X,Y,Z adopts Japanese Mitsubishi servo system, very very high precision, very stable !

X axis Ball Screw Transmission

Brand: : TBI

Original: TAIWAI

X,Y axis ball screw transmission, imported Taiwan ball screws, Original imported Taiwan Linear guide, higher accurate, more durable!

Adjustable Laser Head

Brand: DAHAN

Made the laser beam more suitable to cutting.

Constant light Path

  Unique Design: Equidistant Fixed beam optical laser system (5 pieces of mirrors reflecting light).
  Whatever how the laser head moves, from the starting point of laser to the end, the light path has the same distance. That makes the cutting power and cutting effect the same.
