Product Name:Automatic High Speed Aluminum Sign Board letter bending machine wholesaler price

Product Details:
Model:
Select Payment and Shipping Terms:
Min. Order Quantity:
1 Set/Sets
Place of Origin:
Min. Order:
FOB Price:
USD 5800.00-7500.00 /
Shipping Terms:
1
Shippment Port:
Tianjin
Payment Terms:
T/T
Show Buyers your Ability to Supply:
Production Capacity:
100 Set/Sets per Month
Delivery Time:
Winthin 25 days
Packaging:

Detailed Product Description:

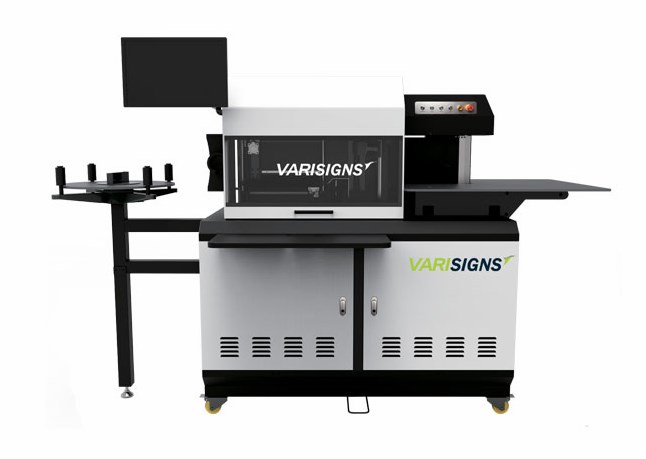

Automatic letter bending machine 130SD


Product Application:
Fully functional, which has combined both the plate and profile processing. This system integrated the most convenient switching function of material and cutter, the design of double slotting cutter and double bending tools can easily deal with stainless steel, galvanized sheet, aluminum plate and aluminum profile and other materials processing.

Advantages:

1.For the same graphics processing the consistency achieved to 99% For the batch words producing even more advantages.
2.Min. bending angle achieve R6.
3.Perfectly match with laser welding machine.
4.High degree of Forming. It can match with the panel which produced by all kinds of cutting equipment and the matching degree is more than 90%.

Product details

 1.Double bending tools bending system,special designed bending tools and the tools edge, capable of bending with plate and profile. Better choice for small angle and radian bending.


2..Continual rolling press feeding,fast and precise,continual respond,shorten the time of feeding. The close-loop control from length encoder and system itself, makes possible to avoid the material slipping.

3.Double-cutter slotting, using plane cutter for Galvanized sheet and Stainless steel,using milling cutter for Aluminum plate and Aluminum profiles.


4.Tools case: board card,U-KEY,data expansion line, USB flash disk ,warranty card,bending tool adjusting picture ,mouse pad,2 Power lines, 1VGA line,hexagon wrench,hardware tool, Insurance,mini cutter.

Feeding System
Rolling-typed continuous feeding device
Slotting System
Planer cutter and milling cutter double cutters slotted system
Bending System
Double blade alternate bending system
Suitable Material
Stainless steel, Galvanized steel, Aluminum, a particular aluminium profile for super words
Material Height
20~125mm
Material  Thickness
1.Stainless steel≤1.0mm       2.Galvanized steel≤1.0mm                                            3.Aluminum≤1.2mm              4. Aluminium profile 1.0mm
Accuracy
±0.1mm
Input File Format
.dxf
Dimensions
L*W*H : 1400x750x1650 MM
Motors
2pcs of servo motors, 2pcs of stepper motors
Power
AC220V 50Hz; 3KW
Air Supply
0.6m3/Min
Total Weight
430Kg

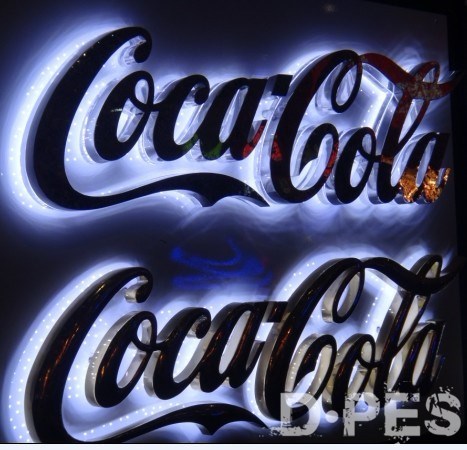

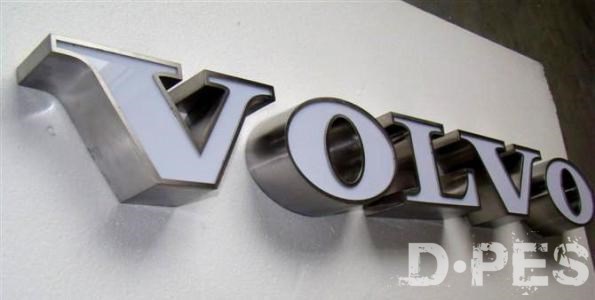

Bending samples
Our Company

Our Beijing Century Scientific Co,.Ltd is a manufacturer which specializing in all kinds of machines and exporting the laser,fiber and CNC router machine with high quality and low price in your country over 10years’ history, now is very famous in China.
We still have two subsidiary, in Guangzhou and Xi an.
Our company only focuses on Middle,High Quality products.

We provide free training and on-site installation services
Beside, we answer question within 2h on call or any other way as we can..
Also, we attend internationl advertisement exhibition such as DEPS, APPP, etc..every years.

This is one of signing contrac's photo during the exhibition and the contract signing time.

Certifications
Our Service

On-site servie
* If you need, we can send engineer to your site for installation, training your people
*You can come to our factory to take training.
* We provide detailed maual and videos, pictures to help you install and operate machines.

On-line service
* If you have any problem during using machines, you can call us, E-mail us, or talk by wechat, whatsapp. etc.
* We will help you analysis the problem by pictures, videos, and offer you solution step by step.

Pre-Sales Service
* Inquiry and consulting support.
* Sample testing support.
* View our Factory.

After-sales Service
* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.

Packing & Delivery

Payment terms:

1. Payment: T/T, Western Union, cash, 30% deposits, 70% balance before delivery
2. MOQ: 1 set
3. Warranty :1year
4. Package: wooden case
